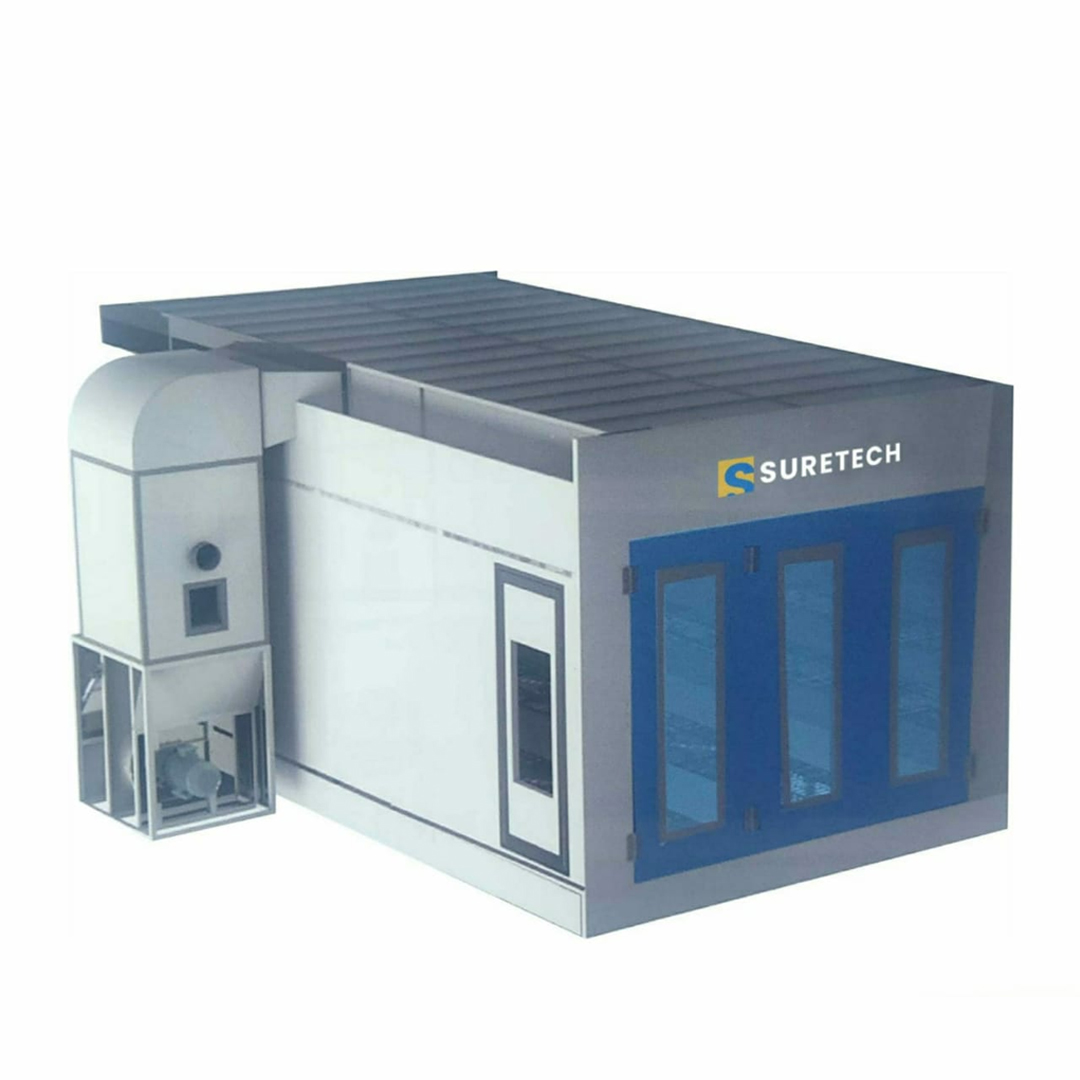

PAINT BOOTH

  • Description
  • Additional Information

Suretech dedeicated to provide a high qualoty solution for painting automotive vehicles and parts. It ensure dust free operation during the painting process so that the quality of the painting is improved. Its has a point baking facility for proper drying of painted area. Inverter technology available with our paint booth that help body shops to increase profits, lower operating cost and reduce environment impact

• EPS (Expanded Polystyrene) sandwich panels, no Thermo transfers between inside and outside of the booth
• 8 ceiling light boxes (each with 3x16 Watts) LED bulbs
• Pre-filter class EU3 in Thermic group
• Fine filter in ceiling class Eu5
• Paint stop floor filter EU2 with filter frame
• Metal base (300 mm height)
• Two row K700 capacity galvanized grids floor
• Three rows of reinforced Gl plates
• Standard Paint Booth includes the blower with damper unit and thermic unit
• Single turbo fan 5.5 kw (intake)
• Riello G10 Diesel oil burner
• Full function control panel with CE approved electric components

SPECIFICATIONS STA-PB 1000 STA-PB 1000 Plus
Inside Dimensions 6900 * 3900 * 2650mm 6900 * 3900 * 2650mm
Main Door Dimensions 3000 * 2600mm 3000 * 2600mm
Service Door Dimensions 650 * 1800mm 650 * 1800mm
Flow Rate 18000 m³/h 18000 m³/h
Air Velocity 0.2-0.3 m/s >= 0.21m/s
Working Temperature 80°C 80°C
Fuel Consumption Depends on usage, filter & ambient condition
Lighting Intensity 650-700 Lux <800 Lux
Sound Level <80 dBA <80 dBA
Applicable Vehicle Passenger Car Passenger Car
Power Supply 380V AC, 3Phase, 50Hz 380V AC, 3Phase, 5
Power 6.5 KW 8 KW

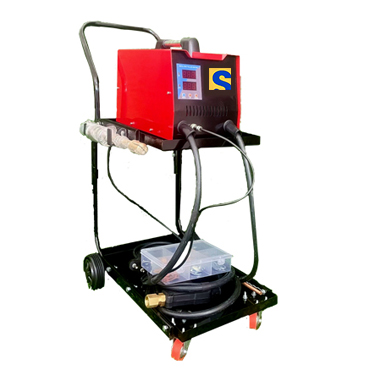

DENT PULLER

  • Description
  • Additional Information

Steel dent puller Specially designed for removing the all type of dent in car body car running board also Using different type of tools remove the dent. This machine is user friendly for tinkering workers.

Model : AJR2022
Input Power : 220-240V AC
Max. Welding Output: 10KVA
Max. Welding Curren 4900A
Input Cable : 3 Core x 2.5 SQ mm x 2m
Output Cable : 50 SQ mm x 2m long
Fuse : 25 A fuse
